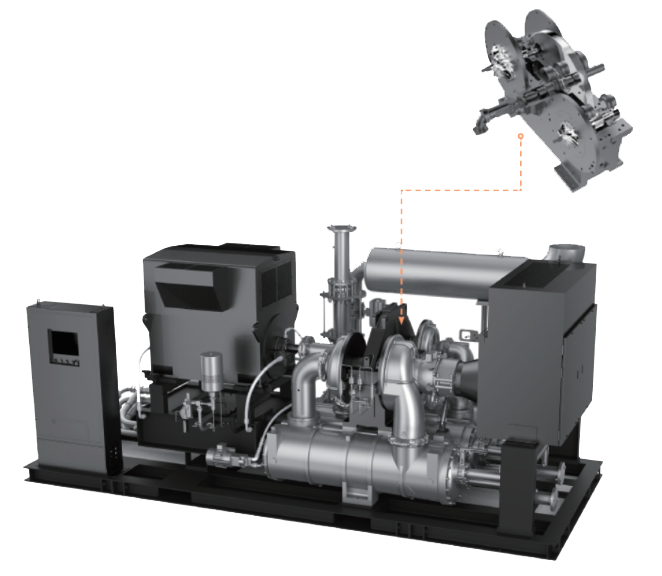

Hanwha Oil Free Centrifugal Air Compressor SM100 Series
Category: Hanwha
Specifications
Type
Package Type 包装类型, Standard Type 标准类型
Details
Features:
1. Energy Saving Inlet Guide Vane
1. Energy Saving Inlet Guide Vane
- Precise control of air flow by efficeint inlet air control
- Reduction of power consumption through partial load control
- Low pressure loss with airfoil profiled vanes
2. Durable Coolers
- Water-in-tube inter & aftercooler bundles allow simple maintenance and easy cleaning
- Corrosion / erosion resistant material applied for protecting damage of other components
- Minimizing pressure drop by optimized airflow
3. Simple & Neat Package
- Complete full package for plug & run provides easy and low-cost installation
- Full enclosure is applicable for clean appearance and quiet operation which creates a comfortable work environment (Low noise with sound enclosure)
- Minimizing maintenance cost by simple structure
4. Leak-Free Lubrication System
- Minimum air leakage reduces losses and increases overall efficiency
- Leakproof gearbox prevents impurities from entering the process
- Complete lubrication system package (Including Oil reservoir, Auxiliary oil pump, Oil heater, Oil demister)
5. Maintenance Friendly Gearbox
- Easy maintenance by horizontally split structure
- Minimum cost for inspection and maintenance
6. Highly Efficient Main Drive Motor
- Highly efficient package saves energy
- Custom motors are available reflecting client requirements (option)
Specifications:
| Model | SM3000 | SM4000 | SM5000 | SM6000 | ||
| Flow Rate | m3 /hr 3 | |||||
| CFM | ||||||
| Power | kW | |||||
| HP | ||||||
| Discharge Pressure | bar A | |||||
| Psi A | ||||||
| Dimension (L×W×H) *Dimension and weight are subject to change |
mm | P | 4,750 x 2,100 x 2,500 | 5,100 x 2,250 x 2,500 | 5,450 x 2,250 x 2,500 | 6,200 x 2,300 x 2,550 |
| S | 3,150 x 1,980 x 2,100 | 3,780 x 2,080 x 2,130 | 3,960 x 2,100 x 2,350 | 4,480 x 2,220 x 2,520 | ||
| inch | P | 187 x 83 x 98 | 201 x 89 x 98 | 215 x 89 x 98 | 244 x 91 x 100 | |
| S | 124 x 78 x 83 | 149 x 82 x 84 | 156 x 83 x 93 | 176 x 87 x 99 | ||
| Weight | kg | P | 8,700 | 10,250 | 12,950 | 17,550 |
| S | 7,050 | 8,400 | 10,900 | 15,250 | ||
